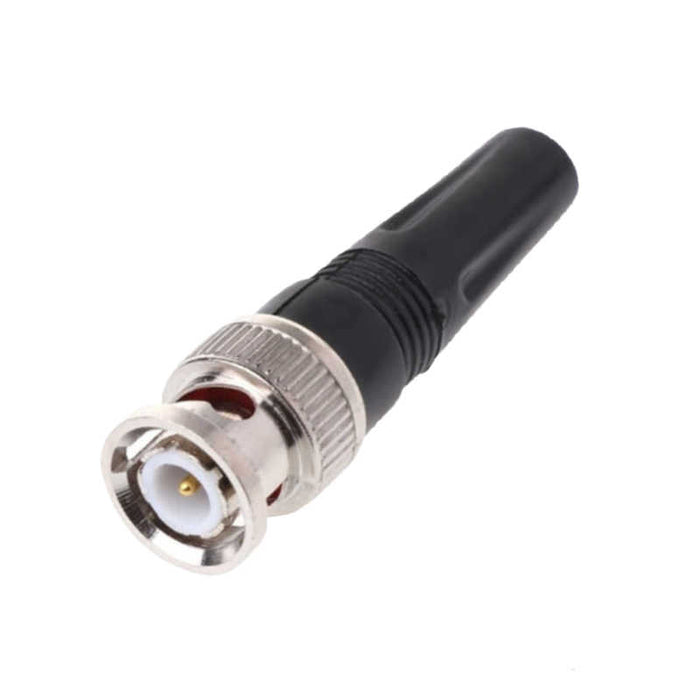

RG59 BNC Male Plug Connector Twist-on Coaxial Cable CCTV Camera

Description:

Solderless BNC Male Adapter Straight Angle Connector for RG59 CCTV Cable Solderless BNC male adapter for RG59 coaxial cable. Straight angle design connects CCTV cameras, DVRs, multiplexers and video switchers without soldering. Fast, reliable installation with secure signal transmission.

Specifications:

• Male BNC connector for RG59/RG60 coaxial cable
• Solderless design — no welding required for quick installation
• Twist-on coupling provides firm, loss-free connection
• Zinc alloy construction with PTFE insulation for heat resistance
• Nickel-plated exterior for corrosion protection and durability
• Compact size: 5 × 1.4 cm (1.97 × 0.55 inches)
• Easy connect and disconnect for flexible system setup


Instructions:

• Strip 12mm maximum from the cable's outer sheath
• Remove 5–7mm of insulation to expose the core wire

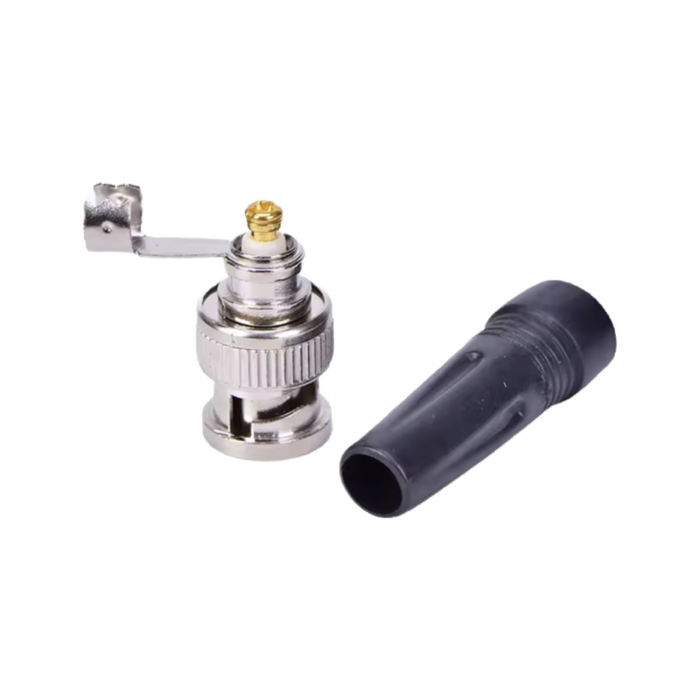

• Slide the rubber outer shell onto the cable
• Loosen the brass centre screw and wrap the core around it
• Tighten the screw to secure the core in place
• Straighten the clamp strip and position the insulator with braid touching the metal
• Use a crimping tool to lock the clamp onto the braided section
• Press-fit the rubber outer shell down to the metal plug to complete assembly

Package Content

1X BNC connector
